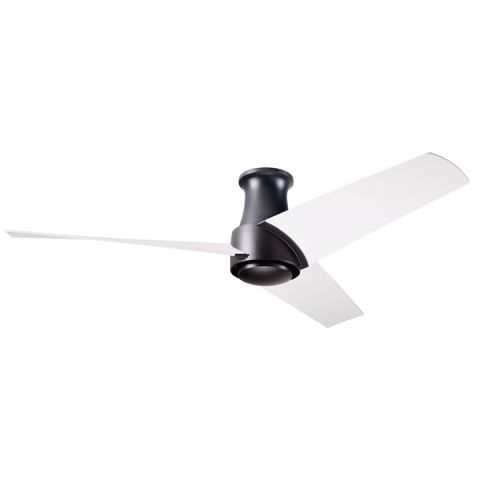

Ambit Flush DC Ceiling Fan by The Modern Fan Co. Ambit Flush DC Ceiling Fan by The Modern Fan Co.

    Ambit Flush DC Ceiling Fan by The Modern Fan Co.

    Price: $595.00

    Code: ambit-flush-dc

    Authentic Merchandise > Best Price > Free Shipping

    Nouveau DC Ceiling Fan by the Modern Fan Company

    Manufacturer: The Modern Fan Co
    Collection: Ceiling Fans

    • 6-speed, reversible DC motor
    • Die cast aluminum construction
    • 56” span, injection-molded ABS blades (solid colors or surface-printed woodgrain)
    • Optional LED light: 17W, 90 CRI, 3000K, 1530 lumens (dimmable) behind an opal glass diffuser; CA Title 24 (JA8) compliant
    • Intended for low, flat ceilings only. For higher or sloped ceilings, consider the down rod suspended Ambit DC fan.
    • ETL listed for dry and damp locations
    • Weight: 16.0 lbs (7.26 kgs)

    DIMENSIONS:

    PERFORMANCE DATA:

    High Speed Performance Data: Based on DOE standardized test method

    RPM: 145
    CFM (Cubic Feet per Minute): 4,065
    Watts (fan only): 26.68
    CFM/Watt: 152

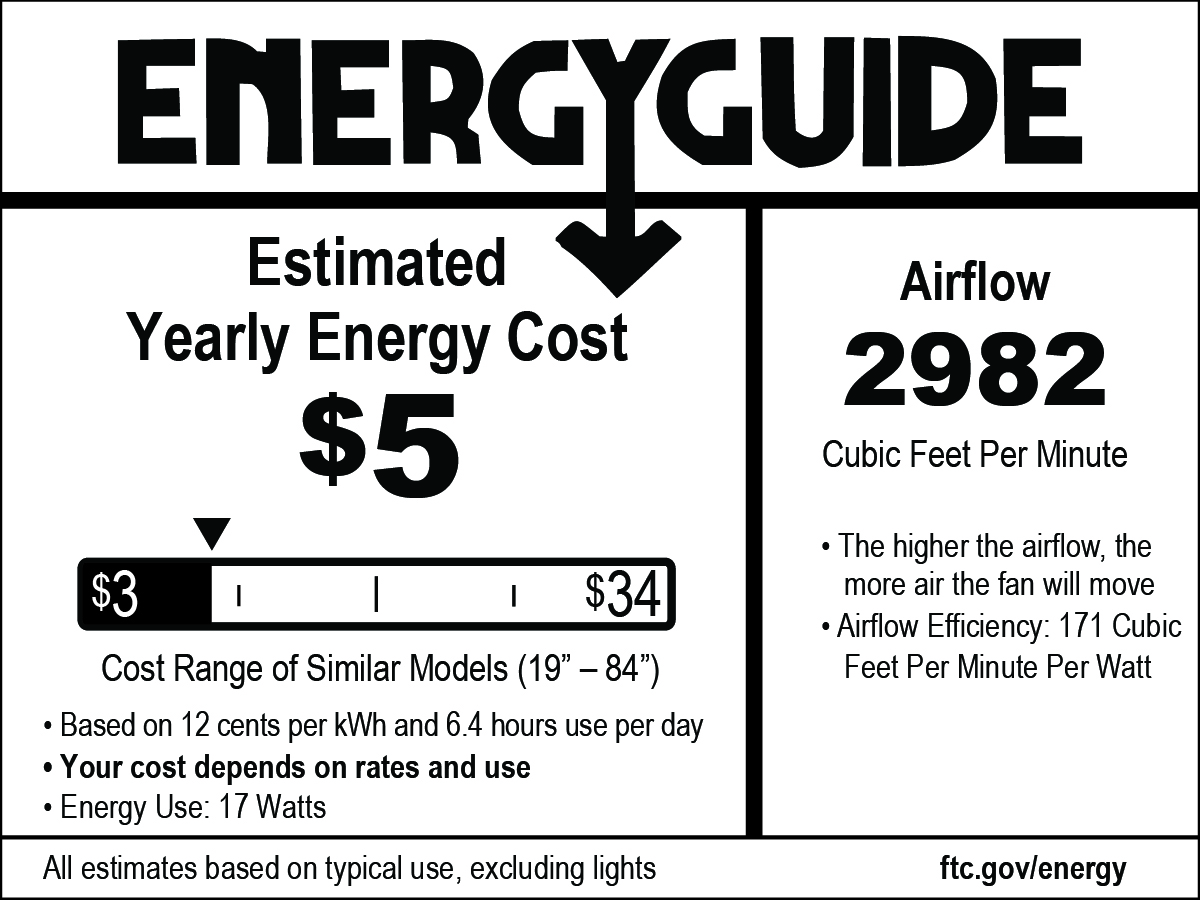

    Energy Guide Data: Representing weighted averages of high speed and low speed performance based on DOE/FTC standardized reporting criteria. Assumes typical use (excluding light).

    Average Energy Use: 17 Watts
    Average Airflow: 2,982 CFM
    Yearly Energy Cost: $5.00
    Average Efficiency: 171 CFM/Watt

    Ceiling fan manufacturers are required by federal law to publish an EnergyGuide label for all models in a standardized format, including watts used, cubic feet of air moved per minute (CFM), a resulting CFM per watt efficiency value and an estimated annual cost to use the product. These values are “weighted averages” of high and low speed performance and are intended to represent typical use. They are based on results from a standardized test gathered in a controlled environment and are furnished to help consumers and specifiers compare products. Because the standardized test method and the EnergyGuide format has changed over the years (with significant impacts on resulting data), be sure to only compare information which has been published based on current test methods and EnergyGuide label format. Many websites continue to provide “high speed” performance data instead of the more current “weighted averages”, making for large discrepancies. Please contact our customer support team with questions about performance data.

    It is also important to recognize that in a real world installation, there are a number of variables that can affect air movement patterns and volume, including ceiling height, down rod length, room size/layout, furnishings and airflow direction. It can be challenging to rely on the reported EnergyGuide information alone to determine how the airflow might feel in a given application. Nevertheless, our EnergyGuide data shows that all Modern Fan products perform at the upper range of fans on the market.

    Furthermore, while DC motor fans are reaching new levels of efficiency, it’s important to remember that all ceiling fans (AC or DC motors) are inherently efficient and use very little electricity to begin with, especially when used to offset or reduce use of air conditioning.

    > Select the right fan

    Usually ships in 2-3 business days.
